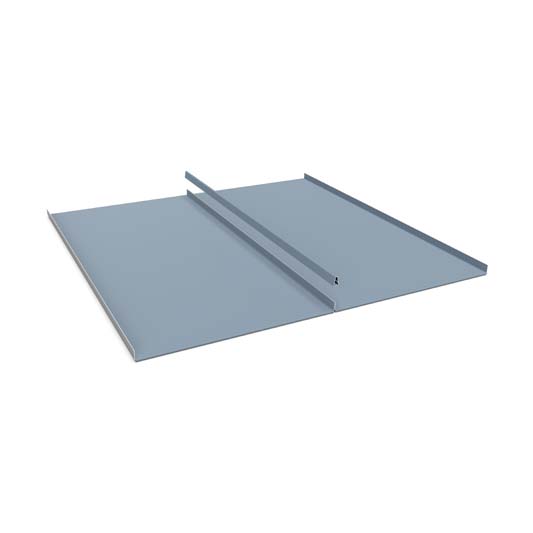

Tee Panel
SNAP LOCK BATTEN PANEL
The Tee Panel is ideal for use in roofing, mansard and fascia applications. Tee panel is designed to be installed over a solid substrate with a minimum 3:12 roof pitch. The panel is excellent for radius and tapered conditions.
Available Materials: Galvalume (22, 24 gauge) / Aluminum (.032, .040, .050) / Copper (16 & 20 oz)
Available Widths: 12" - 20"
Panel Options: Striations (Recommended) / Stress Ribs / Curved/Radius / Flat (Not Recommended)
Substrate Requirements: Can be installed over Solid Substrate.
Minimum Roof Pitch: 3:12
Underlayment: Ice & Water Shield (recommended) or Synthetic Underlayment.
Finish: Kynar 500 (Fluoropolymer PVDF Coating)
Material Warranties:
Galvalume Substrate Warranty
Galvalume Plus Substrate Warranty Aluminum Substrate Warranty Available Colors
Architectural Colors
Terra Cotta
Aged Copper
Bone White
Sandstone
Surrey Beige
Colonial Red
Patina Green
Regal White
Ash Gray
Sierra Tan
Regal Red
Hemlock Green
Stone White
Dove Gray
Medium Bronze
Burgundy
Hartford Green
Slate Blue
Slate Gray
Mansard Brown
Matte Black
Evergreen
Regal Blue
Charcoal Gray
Dark Bronze
Metallic Colors
Non-Painted Acrylic Coated Galvalume
